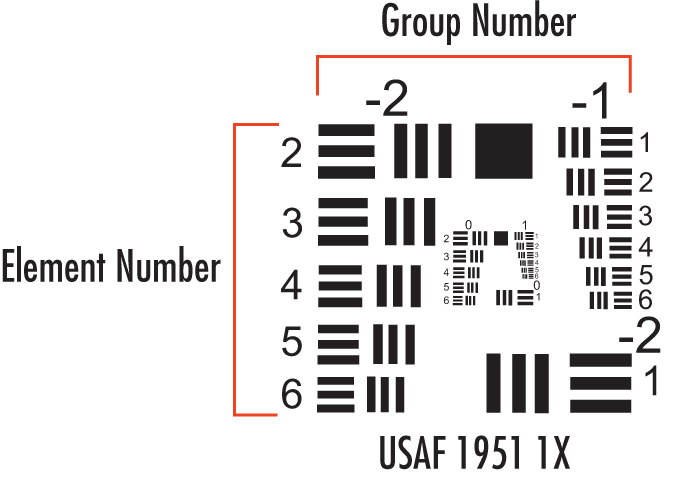

Group Number:

-2 -1 0 1 2 3 4 5 6 7 8 9

Element Number:

1 2 3 4 5 6

Resolution (lp/mm): --

$$ \text{Resolution} = 2^{\left( \text{Group Number} + \frac{ \text{Element Number} - 1 }{6} \right)} $$

Description

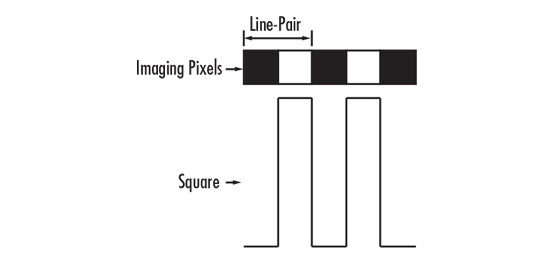

Determine limiting resolution of an optical or imaging application setup. Calculator uses relationship between group number and element number to determine resolution in terms of line pairs per millimeter.
