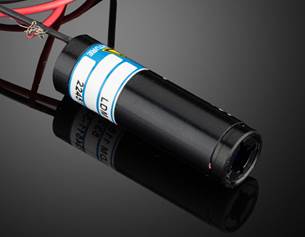

Name: 0.9mW670nm，LDM 激光二极管
SKU: 39-918
Price: RMB 2,177.06

0.9mW670nm，LDM 激光二极管

产品编码 #39-918 6-10 工作日

- +

RMB 2,177.06

数量 1+
RMB 2,177.06

含税批量价格
索取报价

+ 添加至收藏夹
Create an account or log in to access saved list

产品对比

注意: 此项目需要附件以供使用 | 了解更多信息

下载产品资料

工作电流 (mA):

<0.550

工作温度 (°C):

-10 to +55

输出功率 (mW):

0.9 (Maximum)

类型:

Index Guided Diode, CW

波长 (nm):

670.00

重量 (g):

9.5

输出功率容差 (%):

±5

电源:

Power Supply Required and Sold Separately:
USA: #59-099
Europe: Not Available
Japan: #59-099
Korea: Not Available
China: #59-099

存储温度 (°C):

-40 to 85

25°时的平均失效前时间 MTTF（小时）:

≥120,00

电源要求:

3.5 - 5 V DC

位于最近的聚焦点的光束大小 (μm) :

<0.525

目标指示精度 (mrad) :

≤25

电引线/插针式连接 :

red (+), black (-)

引线长度 (mm) :

215

注意 :

Includes: Users Manual, Warning Label, and Focus Key

Beam Diameter (mm):

4 x 2 at Aperture

输出类型:

Free Space

激光类型:

Diode

光束发散（毫弧度）:

<0.5

激光等级 - CDRH:

颜色:

Red

聚焦范围:

35mm - ∞

长度 (mm):

37.00

合规性

RoHS 2015:

符合标准

Reach 224:

符合标准

Certificate of Conformance:

浏览

产品系列说明

Line Generation Optics Available
Bare Leads for Instrument Integration
Focusable from 35mm to Infinity

Self-contained and miniature, laser diode modules offer a variety of features. They are an ideal replacement for a helium-neon laser in many applications, and offer the benefits of superior durability, small size, and a range of wavelengths and powers. Elliptical output beams are produced using a user-adjustable glass focusing lens. Circular output beams are produced using a long focal length plastic lens and are suitable for long distance and alignment applications. Applications include use as pilot beams for alignment, bar code readers, measurement, dimensional scanning, robotic control, target designation, positioning, and analysis. Focusing tool included with all diode modules. Line Generator attachments are available for all diode modules listed. Power Supply, required for operation, sold separately.

Note: Laser diode case is electrically isolated from supply voltage.
