Ball Lens Material

n (Refractive Index)

D (Diameter of the ball lens, mm)

d (Diameter of the input source, mm — optional, for NA)

EFL (mm) --

BFL (mm) --

NA --

Please use the American standard for number formatting (e.g. enter “2.5” rather than “2,5”). The numerical aperture is only calculated when the input-source diameter d is provided.

Drag to rotate • scroll to zoom

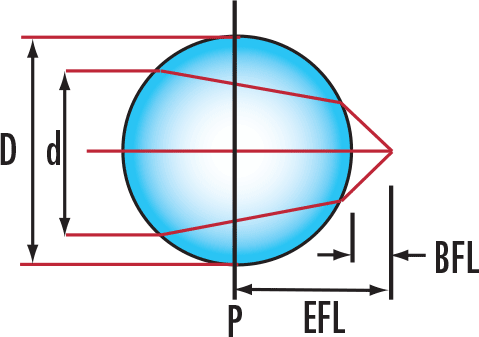

$$ \text{EFL} = \frac{n \, D}{4 \left( n - 1 \right)} $$

$$ \text{BFL} = \text{EFL} - \frac{D}{2} $$

$$ \text{NA} = \frac{2 d \left( n - 1 \right) }{n \, D} $$

EFL	Effective Focal Length
BFL	Back Focal Length
NA	Numerical Aperture

n	Refractive Index
D	Diameter of the ball lens
d	Diameter of the input source

Description

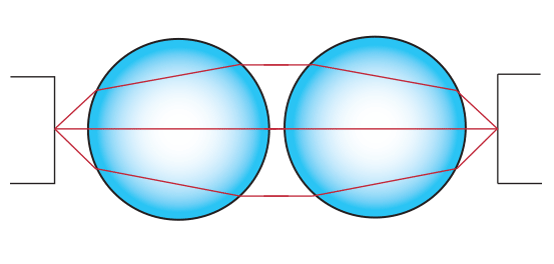

Determine the effective focal length, the back focal length, and the effective numerical aperture of a ball lens based on its diameter, its refractive index, and the diameter of the collimated beam entering or exiting the ball lens. The effective numerical aperture of the application can only be calculated if the user knows the beam diameter. Knowing the numerical aperture is particularly useful when using ball lenses to couple light from a fiber to a laser or to another fiber.
