50mm C VIS-NIR 系列定焦镜头

50mm VIS-NIR, #67-717

×
产品编码 #67-717 8 库存
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
RMB 3,002.41
所示库存数量系全球库存总量，非本地现货。
如需查询具体库存分布位置，可将产品加入购物车进行查看。
本价格为含税价
含税批量价格
数量 1+ RMB 3,002.41 each
Need More? 索取报价
下载产品资料

规格

概况

Product Family:
C VIS-NIR Series
类型:
Fixed Focal Length Lens
Imaging Lens Type:
Compact Lens Coated for Visible to Near Infared

物理和机械特性

虹膜选项:
Variable
长度 (mm):
53.70
最大直径 (mm):
35.8
外径 (mm):
35.8
重量 (g):
107
最大后端突出 (mm) :
2.85

光学特性

采用最大传感器格式时的视场:
42.8mm - 10.0°
Field of View at Max Sensor Format:
Horizontal: 42.7mm - 10°
Vertical: 32mm - 7.5°
Diagonal: 53.5mm - 12.5°
水平视场, 2/3" 传感器:
42.7mm - 10.0°
水平视场，1/1.8"传感器:
34.9mm - 6.9°
水平视场, 1/2" 传感器:
31.0mm - 7.3°
水平视场,1/2.5”传感器:
28.1mm - 5.5°
水平视场, 1/3" 传感器:
23.3mm - 4.6°
水平视场, 1/4" 传感器:
17.4mm - 3.5°
最大像圈 (mm):
11.00
数字孔径 NA, 对象侧:
0.0437
Number of Elements (Groups):
6 (4)
焦距 FL (mm):
50.00
工作距离 (mm):
250 - ∞
孔径 (f/#):
f/2 - f/22
涂层:
425 - 1000nm BBAR
涂层规格:
425 - 1000nm BBAR
入射瞳孔 (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side.
33.76
Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side.
39.77
Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side.
-36.21
最大畸变（%）:
0.25
Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side.
-43.04
Lens Wavelength Range:
VIS-NIR

传感器

最大传感器格式 :
2/3"
Pixel Size (μm):
2.74

螺纹和安装

滤光片螺纹:
M30.5 x 0.50 (Female)
支架:
C-Mount

环境和耐用性因素

存储温度 (°C):
-20 to +60

合规性

RoHS 2015:
符合标准
×
REACH 201:
符合标准
×
Certificate of Conformance:
浏览
×

产品概览

  • 高达⅔"，C接口镜头
  • 高达750万像素，2.8µm像素大小的传感器
  • 用于425-1000纳米波长范围的紧凑型（C）宽带镜头
  • 3.5毫米至50毫米焦距

TECHSPEC®C系列VIS-NIR定焦镜头适用于NIR或VIS-NIR波段的机器视觉应用，符合工厂自动化和检查应用对工作距离和分辨率的要求。除了配有大尺寸光圈，该镜头还镀有适用于1000nm以上波段的宽带增透膜（BBAR），这款高性能镜头可在最严格的照明条件下使用。TECHSPEC®C系列VIS-NIR定焦镜头拥有严格的制造公差，造就了其高水平的成像性能，镜头间差异极小，易于安装到复杂系统中。依靠其高水平的光学性能，工业特色，以及小巧的外形，C系列VIS-NIR镜头成为了新一代工厂自动化光学件的标杆。

还提供 VIS 宽带增透膜 (BBAR)。

注意：如果只需要红外成像，可将 #65-796 UV-VIS截止滤光片直接连接到螺纹规格为M25.5X0.5的镜头上。

技术数据

#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Distortion Plot
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Distortion Plot
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, DistortionPlot (NIR)
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, DistortionPlot (NIR)
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot (NIR)
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot (NIR)
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Working Distance versus Field of View Plot
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Working Distance versus Field of View Plot
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f2.8

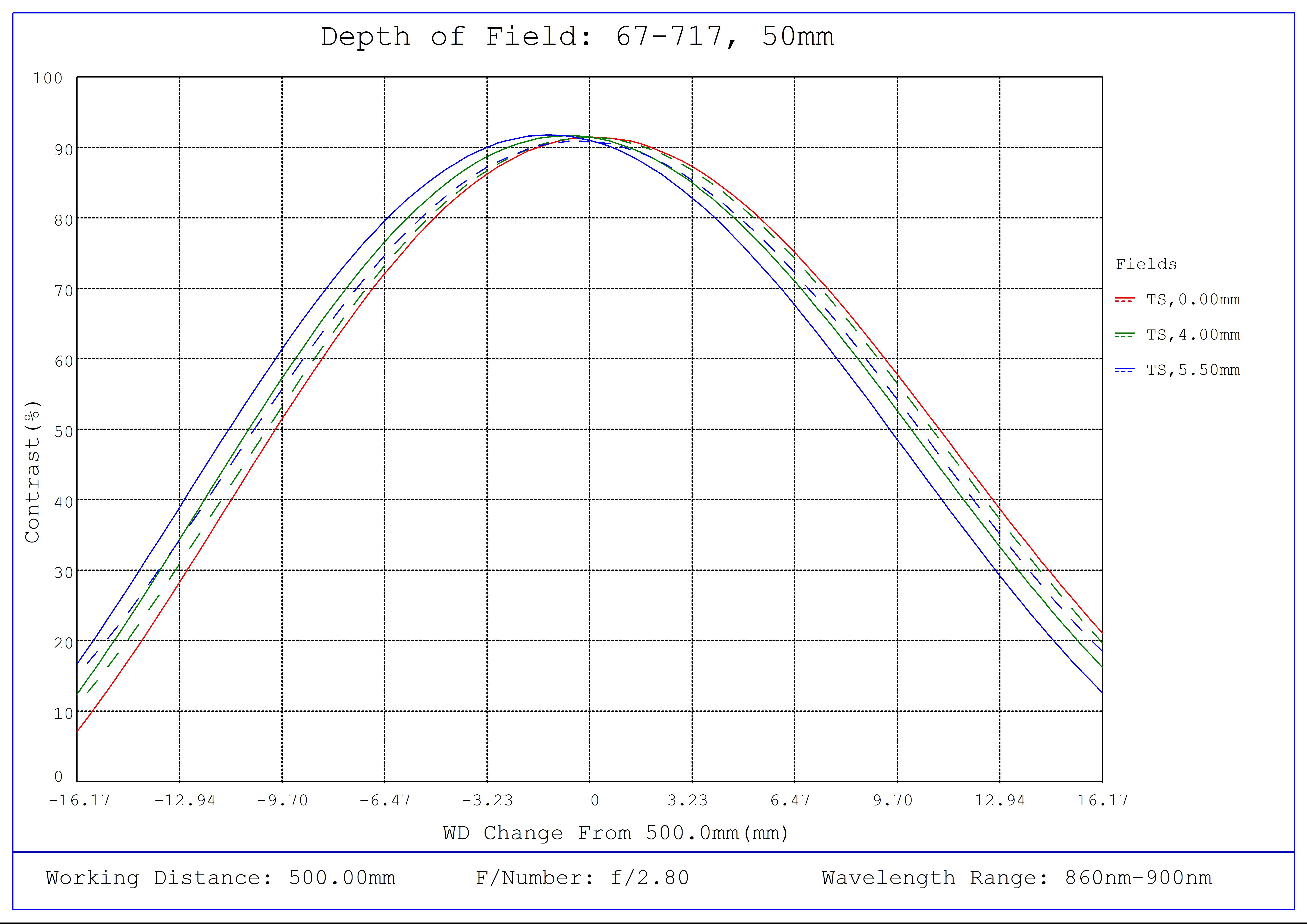

#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 1000mm Working Distance, f2.8
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1000mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1000mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 1000mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 1000mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 1000mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 1000mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 1000mm Working Distance, f4
#67-717, 50mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 1000mm Working Distance, f4

焦距 A B C D
16mm 33.0mm 40.5mm 33.0mm 1.0mm
25mm 31.0mm 30.5mm 31.0mm 1.3mm
35mm 33.0mm 41.0mm 33.0mm 0mm
50mm 35.8mm 53.7mm 35.8mm 2.85mm
