15 x 21.21mm 反光镜,商业级

×
产品编码 #27-590 Clearance 6-10 工作日
×
- +
RMB 211.46
数量 1+
RMB 211.46
含税批量价格
索取报价
下载产品资料

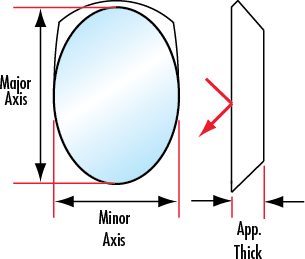

短轴 (mm):
15.00
长轴 (mm):
21.21
表面精度:
λ/2
基底: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Float Glass
尺寸 (mm):
15.0 x 21.21
尺寸容差 (mm):
±0.25
涂层规格:
Ravg >85% @ 400 - 700nm
涂层:
Protected Aluminum (400-2000nm)
厚度 (mm):
4.20
厚度容差 (mm):
±0.25
波长范围 (nm):
400 - 700

合规性

Certificate of Conformance:

产品系列说明

  • Feature Standard Designs and Specifications
  • Present a Circular Profile When Oriented at 45°
  • For More Options, View Precision Quality Elliptical Flat Mirrors

Elliptical flat mirrors are designed to present a circular profile when oriented at 45°. This feature makes them excellent for light bending/folding applications in technical and astronomical applications. Top surfaces are coated with metallic mirror coating. Rear surface is fine ground for maximum durability. Surface is accurate to λ/2. Elliptical flat mirrors are ideally suited for systems where alignment time is an important consideration. Commercial Grade Elliptical Mirrors offer commercial quality, at an affordable price.

Note: Specifications for commercial grade optics may vary as much as 15% from those listed.
